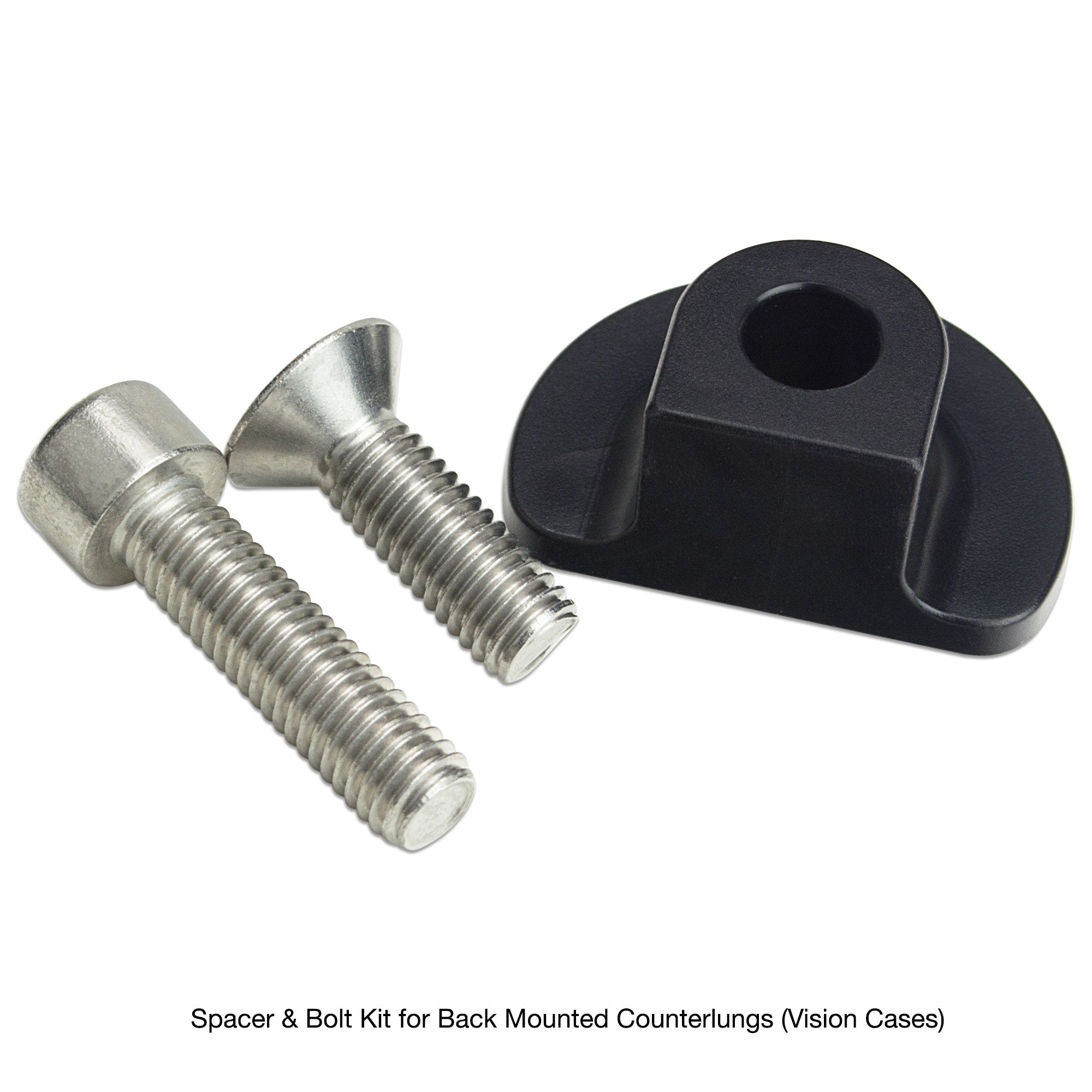

EV10/06/OTSCL/SK and EV10/06/BMCL/SK - Spacer & Bolt Kits for Inspiration, Evolution and Evolution Plus (Vision) Cases with either Over-the-Shoulder or Back Mounted Counterlungs

Replacement part for the following cases:

• All Evolution / Inspiration EVO cases since 2004
• All Evolution Plus / Inspiration EVP cases since 2008
• All Inspiration / Inspiration XPD cases since 2008

All of the base sections of these cases have an indent molded into the top bolt area which the ABS spacer is designed to slot into (as shown left).

The spacer also acts as a strengthening washer and prevents excessive pull on the base when tightening the bolt.

Since late 2014 this spacer has been supplied as a standard item with all new AP rebreathers. If you have one of the earlier cases listed above with an indent, the spacer can be retro-fitted to provide additional support in the top bolt area, if required.

Please Note: If you are changing from Over-the-Shoulder Counterlungs (OTSCL) to Back Mounted Counterlungs (BMCL), the BMCL version of this spacer and bolt kit is included with the upgrade.

Classic cases (with the centre bulge) have a different base with a flat area around the top bolt. Replacement bolt and s/steel washer sets for Classic bases (for both types of Counterlung) are available on request. Please telephone 0044 1326 563834.

There are 2 different Spacer & Bolt kits available for attachment of either Back Mounted (BMCL) or Over-the-Shoulder Counterlungs (OTSCL).

Please specify above which one you require:
